AWS Three-Tier Web Application Infrastructure with Terraform

AWS Three-Tier Web Application Infrastructure with Terraform

Architected and automated an enterprise Three-Tier Web App on AWS using modular Terraform. Spans a Multi-AZ VPC with isolated public/private subnets, Regional NAT Gateway, and dual ALBs with automated ACM TLS termination. Web (Apache) and App (Node.js/PM2) tiers scale across private subnets via EC2 Auto Scaling with zero public IPs. Persists data to an isolated Amazon RDS MySQL database using Route 53 private DNS discovery, secured by a bastion jump host and automated GitHub Actions CI/CD.

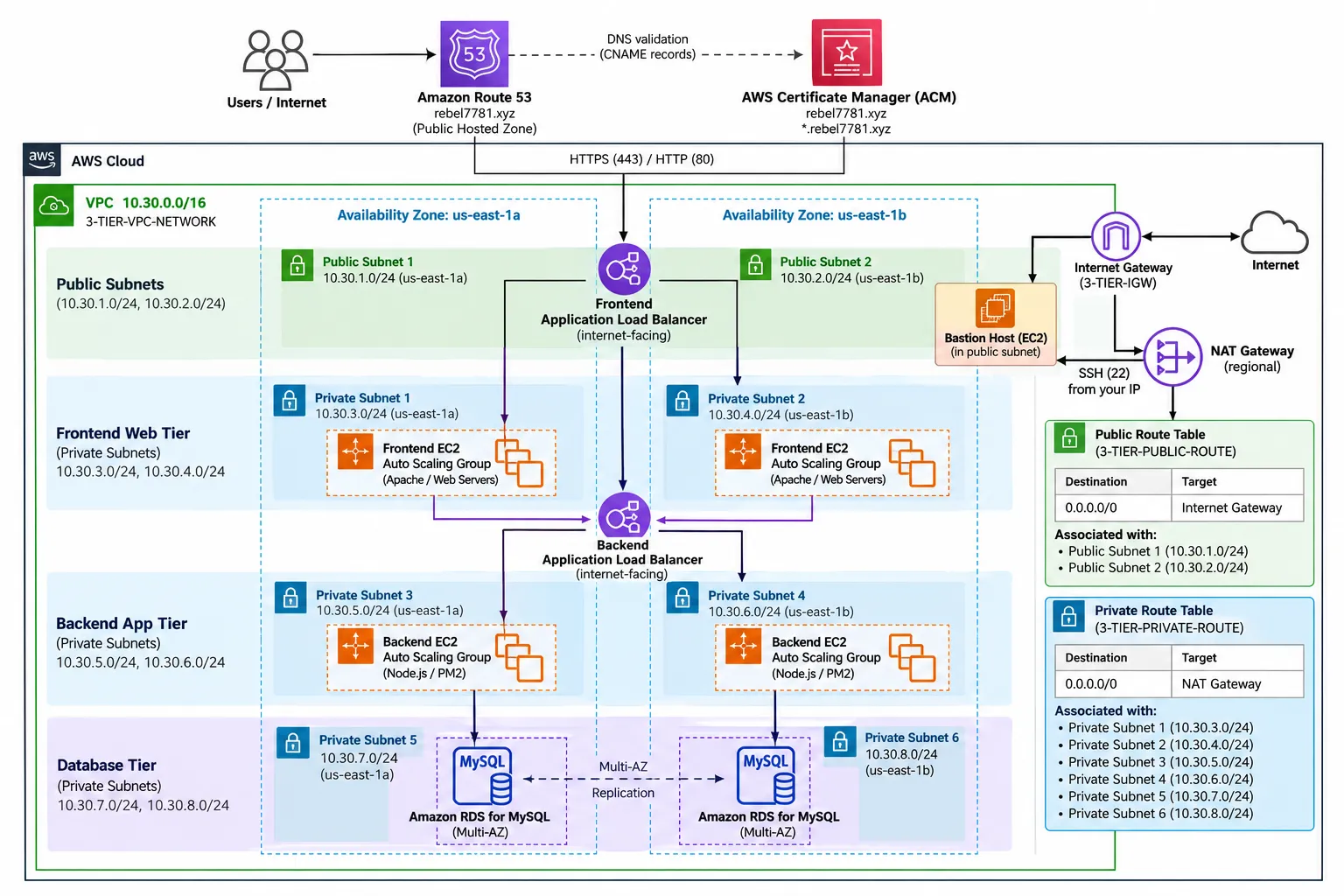

Built and automated a high-availability Three-Tier Web Application Infrastructure on AWS using modular Terraform(v1.5+). The architecture decouples web, application, and database tiers across two Availability Zones (us-east-1a and us-east-1b) following AWS Well-Architected Framework principles.

Key Architecture Highlights

  • VPC & Network Segmentation: Custom VPC (10.30.0.0/16) with 2 public subnets and 6 private subnets. Outbound internet for private instances routed securely via a Regional AWS NAT Gateway.
  • Application Delivery: Dual Application Load Balancers with HTTP (80) and HTTPS (443) listeners, secured with an automated wildcard SSL/TLS certificate from AWS Certificate Manager (ACM).
  • Compute & Auto Scaling: Web (Apache) and Application (Node.js/PM2) tiers run in private subnets via EC2 Auto Scaling Groups with zero public IP addresses.
  • Data Persistence: Amazon RDS MySQL deployed in an isolated database subnet group (publicly_accessible = false) with internal discovery via a Route 53 Private Hosted Zone (book.rds.com).
  • Administrative Perimeter: Secure public-subnet Bastion Host for SSH tunneling.

Key Technical Challenges Solved

  1. Terraform DAG Dependency Cycle: Resolved a circular dependency between Route 53, ACM, and ALBs by querying the hosted zone via an independent data source.
  2. Automated ACM DNS Validation: Enforced aws_acm_certificate_validation to eliminate UnsupportedCertificate errors before ALB listener creation.
  3. AWS ELB Constraints: Standardized resource naming to adhere to ELBv2 alphanumeric and hyphen requirements.

Skills Demonstrated & Links
