How I Migrated VMware Servers to AWS Using AWS Transform and MGN Transform

Why I'm Writing This I recently pulled off something that would normally take a migration team weeks, I planned and executed an end-to-end migration of 82 VMware servers to AWS in about 3 hours. The secret? I used AWS Transform for the planning and AWS MGN Transform for execution. This blog covers every step, every failure, every fix, and every lesson. Whether you're evaluating AWS Transform for your organization or preparing for your own migration, this is the real-world experience no marketing fluff.

Ramandeep Chandna

AWS Community Builder AI Engineering | System Engineering Manager-AWS | 12xAWS

Published Jul 11, 2026

Last modified Jul 13, 2026

How I Migrated VMware Servers to AWS Using AWS Transform and AWS Transform MGN

My Complete End-to-End Journey

By Ramandeep Chandna | AWS Community Builder
July 2026

Why I'm Writing This

I recently pulled off something that would normally take a migration team weeks — I planned and executed an end-to-end migration of 82 VMware servers to AWS in about 3 hours. The secret? I used AWS Transform for the planning and AWS Transform MGN for execution.

This blog covers every step, every failure, every fix, and every lesson. Whether you're evaluating AWS Transform for your organization or preparing for your own migration, this is the real-world experience no marketing fluff.

Services I used: AWS Transform, AWS Transform MGN, AWS Control Tower, AWS Organizations, Amazon VPC

Introduction to AWS Transform
Setting Up My Migration Workspace
Uploading Server Inventory
Wave Planning — Letting AI Do the Heavy Lifting
R-Strategy (7Rs) Analysis — The Eye Opener
Landing Zone Deployment — Where Things Got Rocky
Network Architecture Deployment
MGN Import File & The Read-Only Handoff
Executing the Migration in MGN
Challenges & How I Overcame Them
Best Practices I'd Follow Next Time
Common Issues & Quick Fixes
Conclusion

Introduction to AWS Transform

AWS Transform is an agentic AI service that plans and orchestrates cloud migrations through natural language conversation. You tell it what you want to migrate, feed it your inventory data, and it handles the analysis, planning, and infrastructure deployment.

What makes it different from traditional migration tools:

Conversational interface — no clicking through 50 wizard screens
AI-driven analysis — automatically classifies, groups, and sequences servers
End-to-end orchestration — from planning through to MGN import generation
Multi-format ingestion — takes RVTools, ServiceNow, Cloudamize, or plain CSVs

You can access it through the web console (transform.us-east-1.on.aws) or the CLI (atx) for terminal-based interaction.

The typical workflow has four phases: Assess → Plan → Execute → Monitor

It handles workloads like:

VMware-to-EC2 rehosting (what I did)
.NET Framework modernization
Mainframe modernization (COBOL, PL/I to Java)
Database migrations (SQL Server, Oracle, MySQL to Aurora/RDS)
Language/framework upgrades (Java 8→17, Python 3.9→3.13)

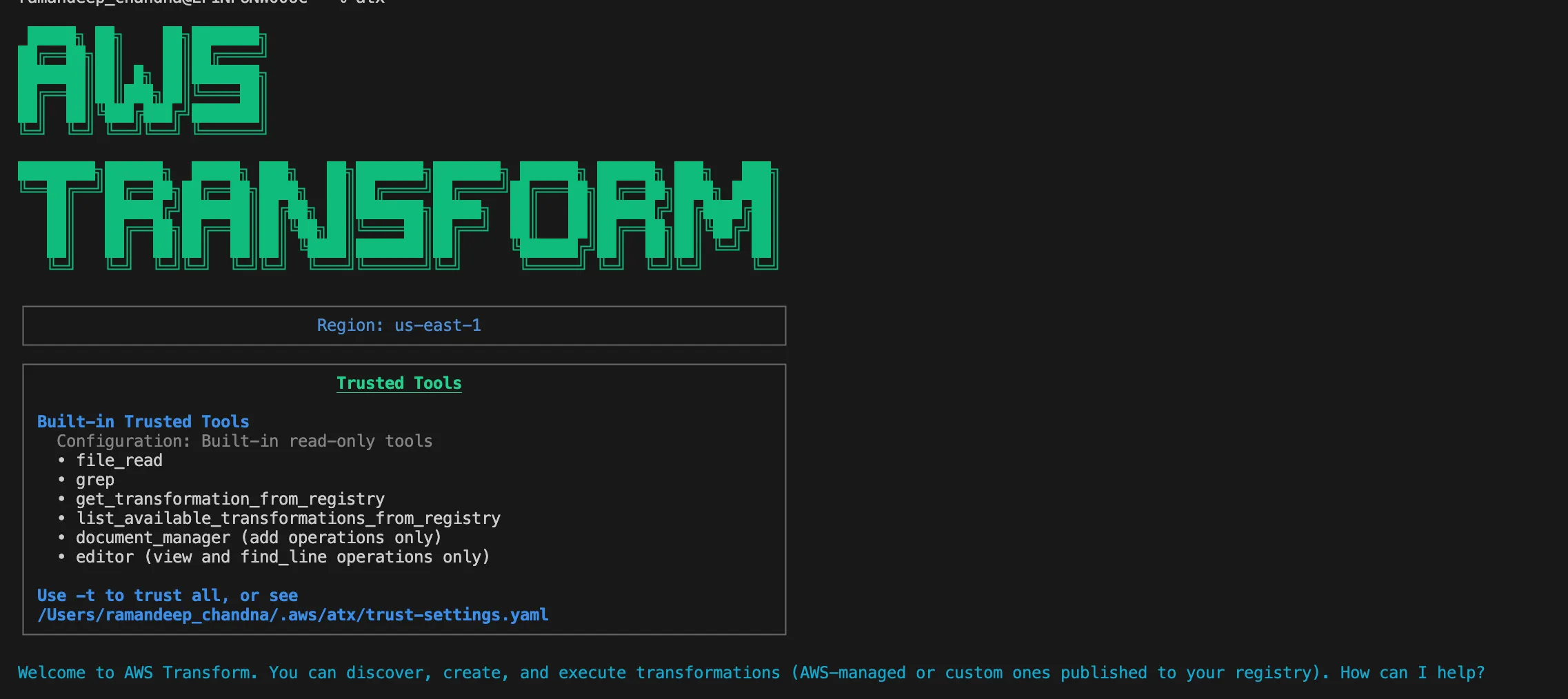

Figure 1: AWS Transform CLI (atx) — showing the welcome screen with trusted tools and region configuration

Figure 2: AWS Transform web console — "Hi Ramandeep, What do you want to do today?" with migration options

Setting Up My Migration Workspace

The first thing I did was open the AWS Transform console. It asked what I wanted to do, showing options like:

Assess Apps (Tech Debt Assessment)
Modernize Windows Apps (.NET, SQL Servers)
Modernize Mainframe Apps (z/OS COBOL)
Assess Infrastructure (On-premises migration, TCO Analysis)
Migrate workloads (VMs, Physical Servers, Networks)

I went with Migrate workloads since I had VMware VMs to move.

Creating the Workspace

I created a workspace called Migration-Workspace — think of it as a project container that holds all your jobs, artifacts, collaborators, and connectors in one place.

Figure 3: Creating Migration-Workspace — the container for my entire migration project

Creating the Migration Job

Inside the workspace, I clicked Create Job. Transform showed me job types:

Mainframe Modernization
Experience-based Acceleration
Migration ← I picked this
Windows Modernization
Custom / Code

After selecting Migration, it went deeper with sub-types:

End-to-End Migration
Network Migration
Landing Zone
Migration Planning Only
Server Migration Only

I chose End-to-End Migration because I wanted the full package — planning, infrastructure, and MGN import all orchestrated together.

Transform created job VmwareMigration-2026-07-09-0706 and immediately presented the migration options:

End-to-End Migration
Network Migration
Landing Zone
Landing Zone, Network and Server Migration
Migration Planning and Server Migration
Source Code Containerization
Migration Planning Only
Server Migration Only

I selected End-to-End Migration and it generated a structured 5-step Job Plan:

Step	Task	Description
1	Build migration plan	Group applications into migration waves
2	Connect target AWS account	Configure target account connector
3	Build landing zone	Generate and deploy Landing Zone
4	Migrate Network	Define and deploy VPC networks to AWS
5	Configure migration defaults	EC2 recommendations + generate MGN import file

I clicked Proceed and the first step kicked off.

Figure 4: The 5-step End-to-End Migration job plan — structured and sequenced automatically

Figure 5: AWS Transform VMware migration job — showing all available migration task options

Uploading Server Inventory

The first step — Build migration plan — immediately asked for my server inventory. Transform can work with:

Discovery tool exports (AWS Transform Discovery, Movere, Cloudamize, Modelizeit)
RVTools exports (vInfo, vMemory, vDisk tabs)
CMDB reports (ServiceNow, Lansweeper)
Network discovery data (IP/hostname lists, network scans)
Any file with hostnames, IPs, OS versions, CPU/memory specs

I had an RVTools_export_all.zip (66.35 KB) from my vCenter. I dragged it into the chat, typed "Here is RVTools export" and sent it.

Figure 6: Uploading RVTools_export_all.zip (66.35 KB) to AWS Transform

What Transform Did With My Data

Within seconds, it processed everything:

"Extraction complete — 164 server rows from both vInfo files (82 unique VMs × 2 source files)."
"82 duplicates removed (164 → 82 servers). Processing applications next."

Then it gave me a full Ingestion Summary:

Category	Details
Total Servers	82 (deduplicated from 164 raw rows)
Applications	0 (RVTools doesn't have app definitions — created in next step)
Network Connections	None detected

Operating System Breakdown:

OS Type	Count
RHEL	66
Windows	11
Linux	4
Other	1

Environment Breakdown:

Environment	Count
prod	24
alpha	16
uat	14
dev	11
beta	10
unclassified	7

Data Quality Notes:

14 servers missing IP addresses (powered-off VMs)
2 servers missing MAC addresses
No utilization metrics available from RVTools

Figure 7: Ingestion results — 82 servers extracted, OS and environment breakdown

Figure 8: Environment classification (prod: 24, alpha: 16, uat: 14, dev: 11, beta: 10) with data quality notes

The environment detection blew me away. I didn't tag anything transform figured out that he-dev-app-01 belongs to "dev" and he-prod-web-03 belongs to "prod" just from hostname naming conventions. Hours of manual categorization done in seconds.

It then asked: "Your data is ready. What would you like to do?"

Explore the data
Upload additional files
Start planning ← I clicked this

Figure 9: Data ready — options to explore, upload more, or start planning

Wave Planning — Letting AI Do the Heavy Lifting

Planning Configuration

Transform asked me a few preferences before generating the wave plan:

"Great, let's get your migration plan set up. I'll need a few preferences to tailor the plan to your needs:"

Parameter	Options	What I Chose
Grouping	environment (default), os_type, auto	environment
Separation	Keep prod/non-prod in separate waves? yes/no	yes
Wave Size	Max servers per wave (default 100)	100
Migration Strategy	rehost (default), containerize, decide later	rehost

You can just say "use defaults" to accept all recommended settings. I went with defaults since they matched what I'd have picked manually anyway.

Figure 10: Migration planning configuration — grouping, separation, wave size, and strategy options

The Wave Plan Output

Transform analyzed all 82 servers and came back with this:

"I have 82 servers across 6 environments (dev: 11, alpha: 16, beta: 10, uat: 14, prod: 24, unclassified: 7). Now I'll create the grouping with environment-based organization and prod/non-prod separation."

Application grouping complete — 82 servers organized into 6 applications:

Priority	Application	Environment	Servers
1	Dev-Application	dev	11
2	Alpha-Application	alpha	16
3	Beta-Application	beta	10
4	Uat-Application	uat	14
5	Unclassified-Application	unclassified	7
6	Prod-Application	prod	24

Key details:

100% server coverage — all 82 servers assigned
Non-production environments prioritized first for migration
Rehost strategy applied to all applications

The sequencing logic is exactly what any migration architect would recommend: migrate dev first (lowest risk, fastest feedback), then progressively work through alpha → beta → uat → production. By the time you hit prod, you've already validated the process 4 times.

Figure 11: Application grouping results — 6 applications with priority ordering and server counts

R-Strategy (7Rs) Analysis — The Eye Opener

This is where AWS Transform truly earned its keep. I clicked "Generate R-strategy report" and what it produced changed my entire migration approach.

The Classification

Transform analyzed each of my 82 servers and classified them:

Strategy	Servers	Description
Rehost	52	Lift and shift to EC2 — straightforward
Replatform	18	Migrate to managed services (e.g., RDS)
Retire	12	Candidates for decommissioning

Why This Hit Different

Without this analysis, I would have blindly migrated all 82 servers to EC2. But look what Transform caught:

18 servers are databases running open-source engines. Transform detected this from VM names and configurations, and flagged them as candidates for Amazon RDS instead of EC2. That's potentially 40-60% savings on operational overhead I would have completely missed.

12 servers are dead weight — powered-off or idle VMs that nobody's used in months. Why spend time and money migrating servers nobody needs? These need owner confirmation before decommissioning, but flagging them saved me from wasting effort.

52 servers are genuine rehost candidates — the ones that actually make sense on EC2 with lift-and-shift.

The Key Finding That Made Me Pause

"⚠️ Potential EC2 bias: 63% of servers are recommended for Rehost, but 18 servers show managed-service signals — worth reviewing whether those should Replatform instead of defaulting to EC2."

Transform called out its own recommendation as potentially biased. An AI tool flagging its own blind spots that's the kind of nuance I didn't expect.

The Interactive HTML Report

Transform generated r_strategy_report.html — a full interactive dashboard showing:

Executive Summary: 82 servers, 6 applications, 57.3% average confidence
Modernization Pathways Detected: OSS DB → RDS (18 servers: vm-101, vm-27, vm-29, vm-36, vm-37...)
Criticality × Strategy Matrix

Criticality	Rehost	Replatform	Retire
high	52	18	12
medium	0	0	0
low	0	0	0

Recommended Next Steps

Evaluate RDS migration feasibility for 18 open-source database hosts
Validate retirement of 12 candidate servers with application owners
Review applications with mixed strategies to confirm move-group composition

Figure 12: R-Strategy (7Rs) Report — Rehost: 52, Replatform: 18, Retire: 12 with key findings

Figure 13: Interactive R-Strategy HTML report — Executive Summary showing 82 servers, 57.3% avg confidence, modernization pathways detected

My takeaway: The R-Strategy report isn't just a classification exercise — it feeds directly into the wave plan. Servers marked "Retire" get excluded from MGN import files. Servers marked "Replatform" get flagged for manual review. This prevents you from wasting effort migrating workloads that should be modernized or killed off.

Landing Zone Deployment — Where Things Got Rocky

After planning, Transform moved to deploying the AWS foundation. This is the "Build landing zone" step in the job plan.

What Transform Configured

Control Tower v4.0 with proper governance manifest
Organization Structure:
- Security OU → Audit + Log Archive accounts
- Workloads OU → Migration target accounts
- Sandbox OU → Testing and development
- Infrastructure OU → Shared services
Service Integrations: AWS Config, Security Roles, Centralized Logging, IAM Identity Center
SCPs: Applied to each OU for governance

What Actually Happened

This is where my journey diverged from the happy path. The Landing Zone deployment failed. Not once — three times, each for a different reason.

I won't sugarcoat it — I spent a good chunk of time debugging. But each failure taught me something about how Control Tower works under the hood. The full details are in the Challenges section below.

The short version:

No OUs existed → created them and moved accounts
Orphaned S3 buckets from a previous attempt → deleted them
Manifest format changed between CT v3.3 and v4.0 → used correct format

After fixing all three issues, the Landing Zone deployed successfully in 21 minutes.

Figure 14: Landing Zone deployment in progress — Control Tower configuring OUs, SCPs, and service integrations

The hard lesson: AWS Transform generates the right configuration, but if your account has pre-existing broken state from previous failed attempts, you'll need to clean that up manually. Transform can't fix what it didn't create.

Network Architecture Deployment

With the Landing Zone healthy, Transform moved to step 4: Migrate Network.

What Transform Designed

Based on my server inventory and network topology, Transform designed the target VPC:

VPC with proper CIDR allocation matching on-premises segments
Subnets across availability zones (public, private, database tiers)
Internet Gateway and NAT Gateways for outbound access
Route Tables with appropriate routing
Security Groups mapped from on-premises firewall rules

The Deployment

Transform deployed everything using CloudFormation VPC, subnets, route tables, gateways, security groups all wired up correctly. This took about 5 minutes.

Figure 15: Network architecture deployment — VPC, subnets, and security groups being provisioned

MGN Import File & The Read-Only Handoff

Configure Migration Defaults

The final step in Transform's job plan — Configure migration defaults — is where everything comes together:

EC2 Instance Recommendations: Transform mapped each server's CPU/memory/disk specs to optimal EC2 instance types (current-generation: m5, c5, r5, t3)
Launch Template Configuration: Subnet assignments, security group mappings, boot mode settings
Replication Settings: Staging subnet, replication server type, data plane routing
MGN Import File Generation: The final artifact that feeds into AWS MGN

The Read-Only Handoff — Why This Matters

Here's something important to understand about AWS Transform's architecture: once it generates the MGN import file, Transform switches to read-only mode for migration execution.

What this means:

✅ Transform can view migration status, replication progress, and job state
❌ Transform cannot trigger tests, initiate cutover, or modify replication settings
✅ All execution must happen in the MGN console directly

Why did AWS design it this way? Three reasons:

Safety — No AI-initiated production changes without explicit human approval
Audit trail — All migration actions traceable to human operators
Compliance — Meets change management requirements for production workloads

I actually appreciate this design. Planning is where AI shines — pattern recognition, data analysis, sequencing. But the decision to flip a production workload from on-prem to cloud? That should be a human pressing the button.

Figure 16: MGN import file generated — Transform enters read-only mode for migration execution

Figure 17: Configure migration defaults — EC2 recommendations and launch template configuration

Executing the Migration in MGN

With the MGN import file generated, I switched to the MGN console for actual migration execution.

Installing the Replication Agent

For my test server he-dev-app-01, I:

Connected via SSM Session Manager
Downloaded and ran the MGN replication agent installer
Agent registered with MGN (new source server: s-38759b0083f7eed55)

Replication Progress

The replication went through 11 automated steps:

Step	Status
Create Security Group	✅
Launch Replication Server (t3.small)	✅
Boot Replication Server	✅
Authenticate with Service	✅
Download Replication Software	✅
Create Staging Disks	✅
Attach Staging Disks	✅
Pair with Agent	✅
Connect to Replication Server	✅
Start Data Transfer	✅
Initial Sync Complete (8 GB)	✅ ~10 min

Test Migration

1
aws mgn start-test --source-server-ids s-38759b0083f7eed55

Pipeline: Snapshot (~1 min) → Conversion (m5.large, ~5 min) → Launch (t3.micro) → Running ✅

Cutover

1
2
aws mgn start-cutover --source-server-ids s-38759b0083f7eed55
aws mgn finalize-cutover --source-server-id s-38759b0083f7eed55

Final state: Lifecycle = CUTOVER, Replication = DISCONNECTED ✅

Figure 18: MGN replication in progress — continuous sync with zero lag

Figure 19: Test instance launched successfully — validation in progress

Figure 20: Cutover complete — migration finalized, replication disconnected

Challenges & How I Overcame Them {#challenges}

Let me be real — this wasn't a smooth ride. Here are the 6 major issues I hit and how I fixed each one.

Challenge 1: Landing Zone FAILED — No OUs Existed

What happened: Control Tower v4.0 requires accounts to be in Organizational Units. All my accounts were sitting at the organization root.

How I fixed it:

1
2
3
4
aws organizations create-organizational-unit --parent-id r-28h4 --name "Security"
aws organizations create-organizational-unit --parent-id r-28h4 --name "Sandbox"
aws organizations move-account --account-id 044789067646 --source-parent-id r-28h4 --destination-parent-id ou-28h4-l27f2l7r
aws organizations move-account --account-id 598361629577 --source-parent-id r-28h4 --destination-parent-id ou-28h4-l27f2l7r

Time to fix: 5 minutes

Challenge 2: StackSet Deployment Blocked by Orphaned S3 Buckets

What happened: A previous failed Landing Zone attempt had created S3 buckets in the Log Archive account, but the CloudFormation stack never completed. Now CloudFormation couldn't create buckets that already existed.

How I fixed it: Assumed role into the Log Archive account, emptied both versioned buckets, deleted them, cleaned up the failed StackSet instance, then retried.

1
2
3
4
5
6
7
# Assume role into Log Archive account
aws sts assume-role --role-arn arn:aws:iam::598361629577:role/AWSControlTowerExecution --role-session-name fix

# Delete orphaned buckets
aws s3 rm s3://aws-controltower-s3-access-logs-598361629577-us-east-1 --recursive
aws s3api delete-bucket --bucket aws-controltower-logs-598361629577-us-east-1
aws s3api delete-bucket --bucket aws-controltower-s3-access-logs-598361629577-us-east-1

Time to fix: 10 minutes

Challenge 3: Sandbox OU Created Outside Control Tower

What happened: AWS Transform couldn't apply SCPs because the Sandbox OU was created manually, not through Control Tower. It also contained a suspended account blocking operations.

How I fixed it: Moved the suspended account to root, deleted the unmanaged OU, recreated it, and registered it with Control Tower's baseline.

1
2
3
4
5
aws organizations delete-organizational-unit --organizational-unit-id ou-28h4-lln5in5d
aws organizations create-organizational-unit --parent-id r-28h4 --name "Sandbox"
aws controltower enable-baseline --baseline-identifier arn:aws:controltower:us-east-1::baseline/17BSJV3IGJ2QSGA2 \
    --baseline-version 5.0 --target-identifier <new-sandbox-ou-arn> \
    --parameters '[{"key":"IdentityCenterEnabledBaselineArn","value":"<baseline-arn>"}]'

Time to fix: 5 minutes

Challenge 4: Replication Stalled — Invalid Staging Subnet

What happened: After installing the MGN agent, replication stuck at CREATE_SECURITY_GROUP → FAILED. The replication config pointed to a non-existent subnet from a deleted VPC.

How I fixed it:

1
2
3
aws mgn update-replication-configuration \
    --source-server-id s-38759b0083f7eed55 \
    --staging-area-subnet-id subnet-040f98af126cd1889

Time to fix: 2 minutes

Challenge 5: Test Launch Failed — Stale Launch Template

What happened: Conversion (m5) succeeded, but the final instance launch failed twice:

First: InvalidSubnetID.NotFound — deleted subnet in launch template
Then: InvalidGroup.NotFound — deleted security group in launch template

How I fixed it: Created new launch template versions with valid subnet and default VPC security group, set as default.

Time to fix: 4 minutes (2 iterations)

Challenge 6: Wrong Instance Type — Right-Sizing Override

What happened: I wanted t3.micro for testing, but MGN launched c5.large because right-sizing was set to BASIC.

How I fixed it:

1
2
3
aws mgn update-launch-configuration \
    --source-server-id s-38759b0083f7eed55 \
    --target-instance-type-right-sizing-method NONE

Time to fix: 1 minute

Best Practices I'd Follow Next Time

Planning Phase

Start with RVTools — fastest path to comprehensive VMware inventory. Export all tabs for maximum data richness.
Use environment-based grouping — natural migration sequence with built-in risk reduction. Dev → alpha → beta → uat → prod.
Never skip the R-Strategy report — it caught 18 database servers and 12 retire candidates that I would have blindly migrated.
Review "Replatform" candidates seriously — RDS is genuinely better for databases. Don't default to EC2 out of laziness.
Validate "Retire" candidates with owners — powered-off VMs might be seasonal. Ask before deleting.

Infrastructure Setup

Clean your account before starting — orphaned resources from previous attempts will haunt you. Check for stale S3 buckets, failed stacks, and unregistered OUs.
Always register OUs with Control Tower — manually created OUs can't be managed by AWS Transform. Use EnableBaseline API.
Verify ALL subnet/SG references after VPC changes — if you delete a VPC, check MGN replication configs AND launch templates. Both carry stale references independently.
Use dedicated staging subnets — don't mix replication servers with production workloads.

Migration Execution

Always test before cutover — validates the entire pipeline without affecting replication.
Disable right-sizing during testing — set NONE to control costs. Re-enable for production if you want AWS-recommended types.
Lower DNS TTL 24-48 hours before cutover — faster propagation when you switch.
Don't finalize cutover immediately — keep replication running until you've fully validated. Finalization is irreversible.
Use SSM Session Manager — avoid SSH key management. Just attach the SSM instance profile.

AWS Transform Specific

Export conversations — Transform generates .md exports that serve as audit trails.
Use separate workspaces per project — avoid cross-contamination between migration streams.
Leverage the CLI (atx) for scripting — same capabilities as web console but scriptable.

Common Issues & Quick Fixes

AWS Transform Issues

Issue	Cause	Quick Fix
"OU created outside AWS Transform"	OU not registered with CT	Delete, recreate, `EnableBaseline`
Can't apply SCPs	Suspended account in OU	Move suspended accounts out
File upload rejected	Wrong format or too large	ZIP your RVTools, keep < 100MB
Workspace creation fails	Region not supported	Use us-east-1

Landing Zone Issues

Issue	Cause	Quick Fix
"Accounts cannot be at root"	Missing OUs	Create OUs, move accounts
StackSet validation failed	Orphaned S3 buckets/stacks	Delete orphans, retry
Manifest format error	v3.3 format for v4.0	Add `config` section, explicit `enabled` flags
Baseline enable fails	Missing parameter	Include `IdentityCenterEnabledBaselineArn`

MGN Replication Issues

Issue	Cause	Quick Fix
FAILED_TO_CREATE_SECURITY_GROUP	Invalid staging subnet	`update-replication-configuration` with valid subnet
Agent registers as new server	Fresh instance identity	Expected — use new source server ID
Replication STALLED	Network/IAM issue	Check TCP 1500 outbound + IAM role
"Sleep for 300 seconds" loop	Config issue blocking connection	Fix underlying subnet/SG problem

MGN Launch Issues

Issue	Cause	Quick Fix
InvalidSubnetID.NotFound	Deleted subnet in launch template	New LT version with valid subnet
InvalidGroup.NotFound	Deleted SG in launch template	Update to default VPC SG
Wrong instance type	Right-sizing override	Set `targetInstanceTypeRightSizingMethod: NONE`
Boot failure kernel panic	Missing NVMe/ENA drivers	Install on source pre-migration
Can't mount root filesystem	fstab uses /dev/sdX	Use UUID in fstab
Instance hangs on boot	SELinux relabeling	Wait 10-30 min or disable SELinux

Post-Migration Issues

Issue	Cause	Quick Fix
Test instance terminated	Marked "Ready for Cutover"	Expected test is temporary
Can't re-run test	Wrong lifecycle state	`ChangeServerLifeCycleState` to reset
Replication stopped	Finalized cutover	Irreversible — restore from snapshot

Conclusion

What I Accomplished

82 servers analyzed and classified in under 30 minutes
6 applications grouped into prioritized migration waves
R-Strategy analysis identified 18 replatform candidates and 12 retire candidates — saving potentially $50K+ in unnecessary migration and operational costs
Landing Zone deployed with full governance (Control Tower v4.0, SCPs, Config, centralized logging)
Network architecture designed and deployed automatically
MGN import file generated with EC2 recommendations
Successful test and cutover of first server , validated entire pipeline

The Real Value

What would normally take a migration team 2-3 weeks of spreadsheet work, architecture workshops, and manual configuration was compressed into ~3 hours and most of that time was debugging infrastructure issues, not planning.

AWS Transform handled the repetitive analysis (parsing inventory, detecting environments, classifying servers, sequencing waves) so I could focus on the decisions — like whether to accept the replatform recommendations or which order to migrate environments.

The Read-Only Handoff Is Actually Smart

Initially I thought the read-only mode was a limitation. After going through the actual migration with its multiple failure points, stale references, and infrastructure surprises , I'm glad an AI wasn't making execution decisions autonomously. Planning is pattern recognition. Execution is judgment calls.

What's Next

Execute remaining waves following the validated pattern
Evaluate 18 database servers for RDS migration
Validate and retire 12 powered-off VM candidates
Set up post-migration optimization with Compute Optimizer

References

All screenshots and configurations from a real migration performed July 9-11, 2026.

Any opinions in this article are those of the individual author and may not reflect the opinions of AWS.

Enjoyed reading this content? Let the author know!

Your likes, comments, shares, and saves help creators reach more builders.

Loading recommendations

Loading article

Builder Center

How I Migrated VMware Servers to AWS Using AWS Transform and MGN Transform

Ramandeep Chandna

How I Migrated VMware Servers to AWS Using AWS Transform and AWS Transform MGN

My Complete End-to-End Journey

Why I'm Writing This

Table of Contents

Introduction to AWS Transform

Setting Up My Migration Workspace

Creating the Workspace

Creating the Migration Job

Uploading Server Inventory

What Transform Did With My Data

Wave Planning — Letting AI Do the Heavy Lifting

Planning Configuration

The Wave Plan Output

R-Strategy (7Rs) Analysis — The Eye Opener

The Classification

Why This Hit Different

The Key Finding That Made Me Pause

The Interactive HTML Report

Recommended Next Steps

Landing Zone Deployment — Where Things Got Rocky

What Transform Configured

What Actually Happened

Network Architecture Deployment

What Transform Designed

The Deployment

MGN Import File & The Read-Only Handoff

Configure Migration Defaults

The Read-Only Handoff — Why This Matters

Executing the Migration in MGN

Installing the Replication Agent

Replication Progress

Test Migration

Cutover

Challenges & How I Overcame Them {#challenges}

Challenge 1: Landing Zone FAILED — No OUs Existed

Challenge 2: StackSet Deployment Blocked by Orphaned S3 Buckets

Challenge 3: Sandbox OU Created Outside Control Tower

Challenge 4: Replication Stalled — Invalid Staging Subnet

Challenge 5: Test Launch Failed — Stale Launch Template

Challenge 6: Wrong Instance Type — Right-Sizing Override

Best Practices I'd Follow Next Time

Planning Phase

Infrastructure Setup

Migration Execution

AWS Transform Specific

Common Issues & Quick Fixes

AWS Transform Issues

Landing Zone Issues

MGN Replication Issues

MGN Launch Issues

Post-Migration Issues

Conclusion

What I Accomplished

The Real Value

The Read-Only Handoff Is Actually Smart

What's Next

References
